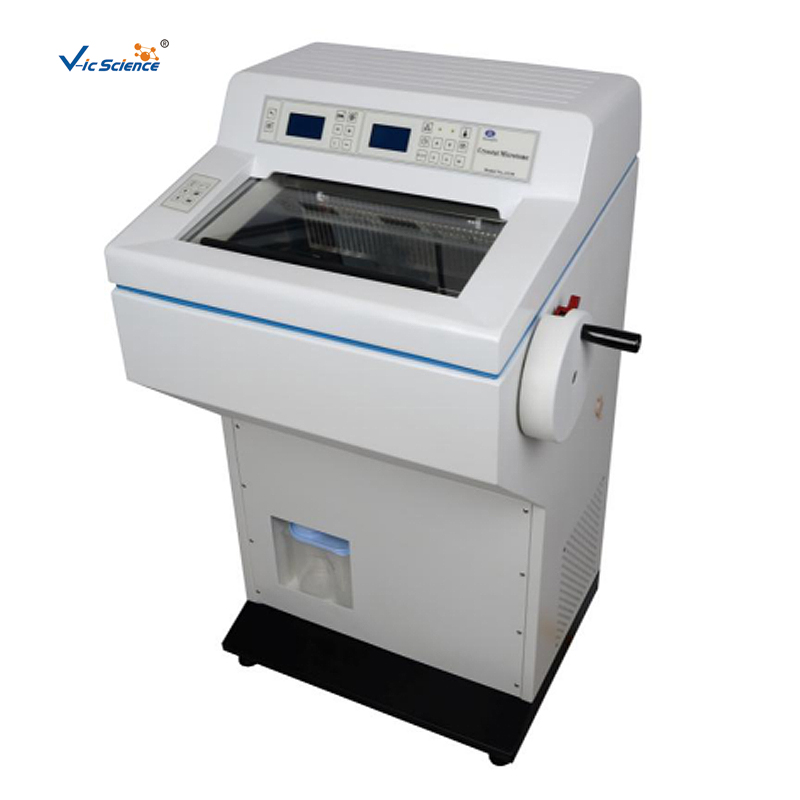

Semi Automatic Freezing Microtome

Basic Info

Model No.: VIC-1900B

Product Description

Lab Equipment Histological Microtome Introduction

The VIC-1900B semi-automatic freezing Histological Paraffin microtome is a slicer for rapid pathological slicer of human and animal body tissues.The machine is widely used in hospitals, biomedicine, agriculture and forestry, education, health and epidemic prevention, animal husbandry and veterinary medicine, public security forensic, scientific research institutions, laboratories and other departments.

Tissue Microtome Main components:
1. The upper part of the computer control panel displays the temperature and working status of the instrument.
2. The central part is a thermostatic low-temperature greenhouse, which can rapidly freeze live tissue for cutting.
3. Mechanical rotation and motor drive.
4. The lower part is Refrigeration Compressor.

Laboratory Equipment Histological Microtome Parameters

Lab Equipment Histological Microtome Main Technical Specifications
Range of Cutting Thickness:1-30(μm)Main Technical Specifications:Main Technical Specifications:Main technical parameters:
Section thickness range:
Adjustable 1 microns to 100 microns
Increment value of 1 m~20 m 1 m;
Incremental value of 20 m~40 m: 2 m;
Increment value of 40 m~100 m is 5 m.
Thickness range:
Adjustable 10 microns to 400 microns
Incremental value of 10 m~50 m: 5 m;
Incremental value of 50 m~100 m: 10 m;
Incremental value of 100 m~400 m: 50 m;
Specimen shrinkage value: 0~95 m adjustable, increment value: 5 m
Horizontal motion stroke of specimen: 20mm
Vertical motion stroke of the specimen: 60mm
Power supply: AC 220V±22V
Frequency: 50 hz + 1 hz;
Power: 600 w
Maximum starting power supply (5 seconds) : 45A
Temperature control range of freezer: -10℃~ -40℃
The lowest temperature of the refrigerating table is: -45℃
Freezing hole locations of samples from the freezing platform: 26
Additional semiconductor refrigeration holes in the refrigerating table: 2
Refrigerant: R404a,300±10g
Compressor oil: 0.6L EMKARATE RL-22S, ICI
Noise: 52 db (A)
External machine size (mm): 660x640x1150;135kgs
Overall Dimensions:450×450×280(mm)

Histological Microtome Application

The product is widely used in hospitals, biomedicine, life science, agriculture and forestry, education, health and epidemic prevention, animal husbandry and veterinary, scientific research institutions, laboratories and other departments at all levels.

Freezing Microtome
